Quad Pro

Quad Pro

The industry’s first 36V solution delivers top efficiency with the highest lumens per watt (LPW) with 10 year warranty.

It features integrated circuits, IDC connectors, and supports longer wire lengths (up to 50m).

With lower energy consumption, constant brightness, and a IP67 Protection, this system sets new standards in lighting performance.

Benefits

  • Warranty – upto 5 yrs
  • Highest Efficiency (LPW)
  • IP 67 protection for the Module
  • Lower energy consumption
  • Higher Loading of Modules in a 36v system
  • Longer wire length between LED module and power supply (upto 50 mtr.)

Description

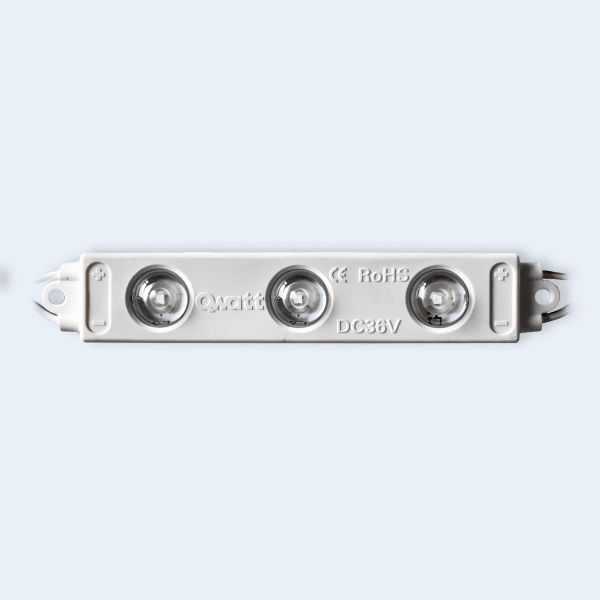

Product Description3 chip LED module
Module Wattage0.5W/0.72W/1.2W/1.5W
Voltage platform36V
CCT (Correlated colour temperature)3000K-8000K,RD,BL,GR
Beam angle of Lens180 Degree
LPW(Lumen per watt)190-200LPW (First time in India)
Life Expectancy50000hrs@L70
CRI(Colour rendering index)80
IP RatingIP67
Warranty10 years
CertificationsCE/ROHS/BIS
ReportsLM79 for module, LM80 for chip
DimensionsL: 113mm, B: 20mm, H: 9.27mm
ApplicationsGSB, Channel letters, Strech Ceiling
Applications in SegmentsAutomobile, Banking, Petrolium, Retail
